Open Packet Transponder & Open Line Systems

From Edgecore Networks and SmartOptics

With the increase in data and video traffic for CSPs, upgrades to existing equipment are required as mobile backhaul usage surges with coming 5G deployments. Sitting at the edge of the network, the Cell Site Gateway (CSG) is a high volume deployment product and a natural location for network operators to start enjoying the benefits of open networking.

The disaggregated cell site gateway removes single vendor lock-in and traditionally slow technology roadmaps from incumbent. Edgecore CSG family is truly open hardware that can run different commercial and open source operating systems, offering choice to the operators.

Request a Quote

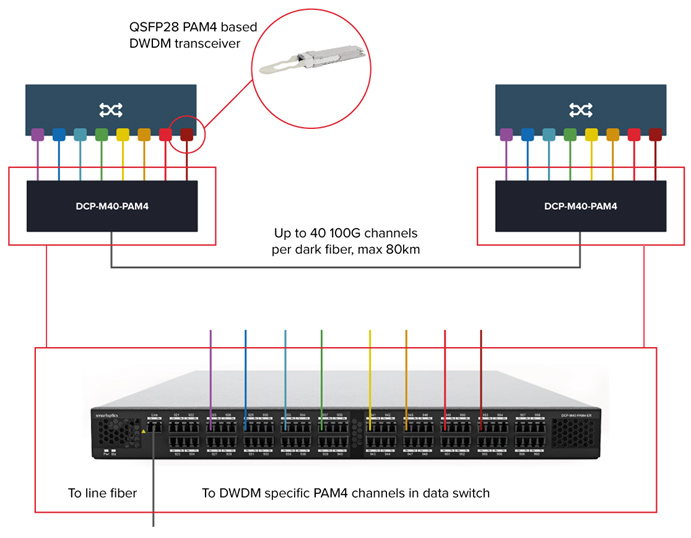

Smartoptics Open Line System Schematic

Features

Fully Open Approach

Embedded DWDM

No Transponder Required

Distance Extension

High Level of Automation

Deep packet buffering

Filler text Filler text Filler text Filler text Filler text Filler text Filler text Filler text Filler text

Cassini Network Toplogy

Cassini is a 1.5-RU open packet optical transponder, whose design was contributed to Telecom Infra Project (TIP) by Edgecore Networks and which is now generally available as a commercial open network product from Edgecore. It is the industry's highest capacity and first modular open packet transponder offering a flexible mix of 100 Gigabit Ethernet (GbE) packet switching ports and 100/200 Gbps coherent optical interfaces for data center interconnect and service provider backhaul use cases.

As an open network platform, Cassini supports disaggregated software options including OcNOSTM from IP Infusion, a whitebox switching NOS optimized for service provider and data center interconnect applications. Its availability on the Cassini packet optical transponder can help network operators easily extend and migrate existing metro and long-haul Dense Wavelength Division Multiplexing (DWDM) networks to add new 100G capacities, and extend inter-DC L2 and L3 services. Later in 2019, Fujitsu carrier grade NOS will be supported on Cassini as well.

Combined with the Transponder Abstraction Interface (TAI), which greatly simplifies the integration work between a network operating system and the underlying optical hardware, operators are equipped with more flexibility and faster time to deliver for the quick replacement of individual components, rather than replacing entire monolithic solutions.

Cassini Features

xxx

xxx

Open Packet Transponder & Open Line Systems Hardware

Spec Sheet

Request a Quote

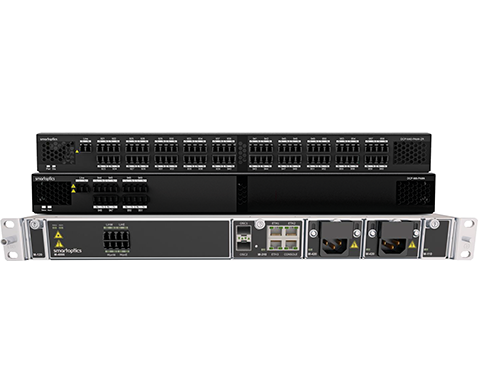

Open Line Systems
Next generation platform for PAM 4 and Coherent DWDM DCI connectivity

DCP-M and M-Series are truly open line systems. They work with any combination of embedded DWDM, transponder and muxponder traffic depending on the specific needs of the network.

DCP-M is exactly like using a passive multiplexer, but unlike a passive multiplexer it monitors the traffic, amplifies the signals for longer distances and can handle higher data rate protocols.

ETSI form factor
Any combination of DWDM transceivers, transponders or muxponders
No complex setup and minimal optical fiber knowledge required
Completely automatic optical setup, just like using a passive multiplexer
Automatic fiber distance measurement and Dispersion Compensation setting
Simple and cost effective datacom not telecom platform

Spec Sheet

Request a Quote

Cassini
Packet Transponder

Based on TIP Specification
16x 100G, 8 Module Slots for ACO/DCO/QSFP28
Broadcom® XGS Tomahawk+
Intel® Xeon® D-1500 CPU

The Benefits of Open Networking

Freedom of Choice

Edgecore switches support the broadest set of commercial and open source software choices in the industry.

Greater Control

Greater control over the development of enhanced network services, flexibility to work with best-in-class suppliers.

Rapid Innovation

Rapid innovation through community and DevOps approach.

Reduced CAPEX and OPEX

Automated & accelerated provisioning of network capacity & services, providing reduced network equipment & operating expenses.

The EPS Advantage

Source your entire network solution, including software, in one place, and save yourself time and money.

Global Reach. Local Presence

We have offices in 28 cities in 16 countries - giving you access to a global supply supported by a local team. Local language & currency support in each region.

Stock Availability

EPS Global stocks all the hardware you need: switches, optics, and cables in our regional distribution hubs worldwide, allowing us to minimize lead and transit times for our customers.

Presales Support Team

Our engineers offer pre-sales technical advice, connecting you with the right software vendor for your application, and will configure the hardware, supporting you through your implementation to ensure it is a success.

Authorized Distribution

Peace of mind. EPS Global has franchised distribution agreements with its suppliers, ensuring traceability, genuine products, and the best tech support. Need something else? We can source products for you.
