S9610-46DX - 46-Port, 100/400G Open Aggregation Router

Product Detail

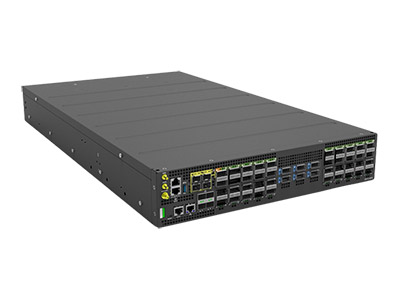

The UfiSpace S9610-46DX Open Aggregation Router, is a high density and multi-function white box aggregation routing platform. It utilizes the Broadcom Qumran2c+ merchant silicon and Intel Icelake processor to enable high capacity, better power efficiency and more buffering within a compact 2RU router.

The S9610-46DX provides a switching capacity of up to 7.2Tbps with full support for both SyncE and IEEE 1588v2 timing profiles. With capabilities to act as an Edge Grand Master (GM) clock and support for Class C timing accuracy,  the S9610-46DX can play a role throughout the mobile transport network. It features 40 high speed 100G ports with an additional 6x400G ports for backhaul.

The S9610-46DX platform can enable multiple application architectures required for high traffic loading in a both fixed and 5G mobile Ethernet networks such as aggregating BBU pools or even as a Broadband Network Gateway (BNG). Additionally, the 400G ports support OpenZR+ and 400ZR to enable a simpler architecture for optical longhaul transmission.
