KB9001 - PCIe 5.0 32 GT/s and CXL 2.0 retimer, x4 bidirectional lanes
Kandou
KB9001

KB9001 - PCIe 5.0 32 GT/s and CXL 2.0 retimer, x4 bidirectional lanes

Manufacturer: Kandou

Datasheet: KB9001

Delivers to: United States

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

The KB9001 is a high-performance 4-lane bidirectional PCIe 5.0 protocol-aware retimer designed for next-generation computing and storage applications. Operating at data rates up to 32 GT/s, it delivers the bandwidth needed for today's demanding server, workstation, and storage environments.

The device offers full compatibility with CXL 2.0 and backward compatibility with PCIe 4.x/3.x/2.x/1.x, ensuring seamless integration with existing infrastructure. Its advanced channel loss compensation capability of up to 36 dB allows designers to extend PCIe trace lengths while maintaining signal integrity per PCI-SIG specifications.

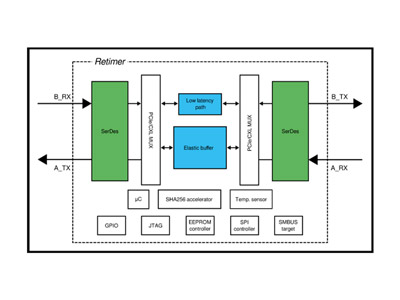

KB9001 - PCIe 5.0 32 GT/s and CXL 2.0 retimer, x4 bidirectional lanes
https://www.epsglobal.com/getmetafile/4eb6a38f-4645-4956-a865-7341b6e443be/kb9001?maxsidesize=400
The KB9001 is a high-performance 4-lane bidirectional PCIe 5.0 protocol-aware retimer designed for next-generation computing and storage applications. Operating at data rates up to 32 GT/s, it delivers the bandwidth needed for today's demanding server, workstation, and storage environments.
KB9001
New
KB9001
0.00
Kandou
https://www.epsglobal.com/getmetafile/bf7d7473-e80d-4570-a005-966b25432641

Features & Benefits

  • PCIe Interface 4-lane bidirectional PCIe 5.0, supports up to 32 GT/s
  • Protocol Support CXL 2.0 and PCIe 4.x/3.x/2.x/1.x compatible
  • Signal Performance 36 dB channel loss compensation
  • Operating Modes CXL Retiming Mode with common clock and low latency datapath
  • Maintenance Features Integrated microcontroller for debug and firmware upgrades

Technical Specifications

PCIe SupportPCIe 5.0 with data rates up to 32 GT/s, backwards compatible to PCIe 1.x
CXL SupportCXL 2.0 compatible with sync header bypass and drift buffer mode
LatencyUltra-low latency of 10ns TYP for both PCIe 5.0 and CXL 2.0
Channel Loss CompensationUp to 36 dB @ 16 GHz Nyquist using adaptive EQ
Package5.5 x 10 mm 146-ball BGA, Intel PCIe 5.0 standard footprint compatible
Power SupplyVDD_PWR1: 1.8V, VDD_PWR12: 1.2V/1.5V/1.8V, VDD_PWR2: 0.9V
Security FeaturesIntegrated SHA256 accelerator, RSA-2048 OTP storage, secure platform boot
Debug FeaturesIntegrated EyeScope, BER monitors, logic analyzer, PRBS pattern generation
KB9001 - PCIe 5.0 32 GT/s and CXL 2.0 retimer, x4 bidirectional lanes Datasheet

-->

Manufacturer

Kandou

Kandou, a Swiss-based company known for precision engineering and innovation, is a leader in high-speed signal conditioning and wired connectivity. With ISO9001 Certification and a reputation for quality, Kandou has shipped over 20 million retimer units, offering industry-leading signal integrity and low bit error rates.
