Retimers

Showing 6 of 6 results

Showing 1 - 6 of 6 results

Need Assistance?

Your local expert is here to help.

Ran De SilvaRan de Silva
Engineering Manager
rdesilva@epsglobal.com
+44 (0)20 3008 9709

KB8002
KB8002 - USB Type-C 40 Gbit/s Multiprotocol Switch and Bidirectional Bit-Level Retimer
KB8002

Quantity breaks available. View Pricing Table

Pricing Table

See Product Detail
Package
72pin, 5x5mm 0.5 / 0.65mm dual pitch
Supply Rails
3.3V ±5%, 1.8V ± 5% 1.0V±3%
Protocols
USB4 Gen2, Gen3 (20 / 40Gbps); USB3.2 Gen1, Gen 2 (5 / 10 Gbps); Thunderbolt 3 (20.625 / 10.3125 Gbps); DisplayPort1.4a (8.1 / 5.4 / 2.7 / 1.62 Gbps)
USB4 Low Power states
Not supported
Quick Quote
Learn More
KB8002 - USB Type-C 40 Gbit/s Multiprotocol Switch and Bidirectional Bit-Level Retimer
https://www.epsglobal.com/getmetafile/3d4d201c-58a4-42d2-9ce5-4e9454874d89/kb8002?maxsidesize=400
The KB8002 is a versatile USB Type-C® 40 Gbit/s multiprotocol switch and bidirectional bit-level retimer from the Matterhorn product family.
KB8002
KB8002
Kandou
https://www.epsglobal.com/getmetafile/bf7d7473-e80d-4570-a005-966b25432641/Kandou
KB9002
KB9002 - PCIe 5.0 32 GT/s and CXL 2.0 retimer, x8 bidirectional lanes
KB9002

Quantity breaks available. View Pricing Table

Pricing Table

See Product Detail
PCIe Configuration
8-lane bidirectional PCIe 5.0 with data rates up to 32 GT/s
Lane Bifurcation
Supports x8, x4 and x2 configurations
Package Size
8.5 x 13.4 mm 332-ball BGA
Performance
36 dB channel loss compensation @ 16 GHz, 10ns latency
Quick Quote
Learn More

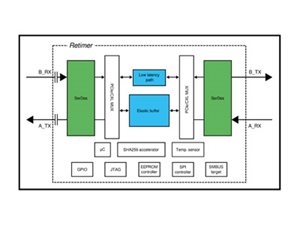

KB9002 - PCIe 5.0 32 GT/s and CXL 2.0 retimer, x8 bidirectional lanes
https://www.epsglobal.com/getmetafile/f293066b-6d70-4728-9f2b-72d5201d1128/kb9002?maxsidesize=400
The KB9002 is an advanced 8-lane bidirectional PCIe 5.0 protocol-aware retimer engineered for high-bandwidth computing and data center applications. Supporting data rates up to 32 GT/s with flexible lane bifurcation options (x8, x4, x2), it delivers the performance needed for today's demanding server, AI accelerator, and 5G infrastructure deployments.
KB9002
KB9002
Kandou
https://www.epsglobal.com/getmetafile/bf7d7473-e80d-4570-a005-966b25432641/Kandou
KB8001
KB8001 - USB Type-C 40 Gbit/s Multiprotocol Switch and Bidirectional Bit-Level Retimer
KB8001

Quantity breaks available. View Pricing Table

Pricing Table

See Product Detail
Package
81pin 4x4mm; 0.4mm pitch
Supply Rails
3.3V ±5%, 1.2V ± 3% 1.0V±3%
Protocols
USB4 Gen2, Gen3 (20 / 40Gbps); USB3.2 Gen1, Gen 2 (5 / 10 Gbps); Thunderbolt 3 (20.625 / 10.3125 Gbps); DisplayPort1.4a (8.1 / 5.4 / 2.7 / 1.62 Gbps)
USB4 Low Power states
Not supported
Quick Quote
Learn More
KB8001 - USB Type-C 40 Gbit/s Multiprotocol Switch and Bidirectional Bit-Level Retimer
https://www.epsglobal.com/getmetafile/bd3fd96f-59fa-4eb8-9558-dbfefd28a62b/KB8001?maxsidesize=400
The KB8001 is a versatile USB Type-C 40 Gbit/s multiprotocol switch and bidirectional bit-level retimer from the Matterhorn family.
KB8001
KB8001
Kandou
https://www.epsglobal.com/getmetafile/bf7d7473-e80d-4570-a005-966b25432641/Kandou
KB9001
KB9001 - PCIe 5.0 32 GT/s and CXL 2.0 retimer, x4 bidirectional lanes
KB9001

Quantity breaks available. View Pricing Table

Pricing Table

See Product Detail
PCIe Support
PCIe 5.0 with data rates up to 32 GT/s, backwards compatible to PCIe 1.x
CXL Support
CXL 2.0 compatible with sync header bypass and drift buffer mode
Latency
Ultra-low latency of 10ns TYP for both PCIe 5.0 and CXL 2.0
Channel Loss Compensation
Up to 36 dB @ 16 GHz Nyquist using adaptive EQ
Quick Quote
Learn More

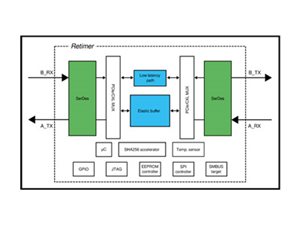

KB9001 - PCIe 5.0 32 GT/s and CXL 2.0 retimer, x4 bidirectional lanes
https://www.epsglobal.com/getmetafile/4eb6a38f-4645-4956-a865-7341b6e443be/kb9001?maxsidesize=400
The KB9001 is a high-performance 4-lane bidirectional PCIe 5.0 protocol-aware retimer designed for next-generation computing and storage applications. Operating at data rates up to 32 GT/s, it delivers the bandwidth needed for today's demanding server, workstation, and storage environments.
KB9001
KB9001
Kandou
https://www.epsglobal.com/getmetafile/bf7d7473-e80d-4570-a005-966b25432641/Kandou
KB9003
KB9003 CEM (x16 lane) Riser Card
KB9003

Quantity breaks available. View Pricing Table

Pricing Table

See Product Detail
PCIe Configuration
16-lane bidirectional PCIe 5.0 with data rates up to 32 GT/s
Lane Bifurcation
Flexible support for x16, x8, x4 and x2 configurations
Package Specifications
8.9 x 22.8 mm 354-ball BGA package
Channel Performance
36 dB loss compensation @ 16 GHz, 10ns typical latency
Quick Quote
Learn More
KB9003 CEM (x16 lane) Riser Card
https://www.epsglobal.com/getmetafile/10072351-76ea-4eca-9157-f09fda8297b5/kb9003?maxsidesize=400
The KB9003 is a high-performance 16-lane bidirectional PCIe 5.0 protocol-aware retimer designed for maximum bandwidth in enterprise and hyperscale computing environments. Supporting data rates up to 32 GT/s with comprehensive lane bifurcation options (x16, x8, x4, x2), it delivers uncompromising performance for the most demanding data center, AI accelerator, and high-performance computing applications.
KB9003
KB9003
Kandou
https://www.epsglobal.com/getmetafile/bf7d7473-e80d-4570-a005-966b25432641/Kandou
KB8010
KB8010 - USB Type-C 40 Gbit/s Multiprotocol Switch and Bidirectional Bit-Level Retimer
KB8010

Quantity breaks available. View Pricing Table

Pricing Table

See Product Detail
Package
72pin, 5x5mm 0.5 / 0.65mm dual pitch
Supply Rails
3.3V ±5%, 1.8V ±5%, 1.0V ±5%
Protocols
USB4 Gen2, Gen3 (20 / 40Gbps); USB3.2 Gen1, Gen 2 (5 / 10 Gbps); Thunderbolt 3 (20.625 / 10.3125 Gbps); DisplayPort1.4a (8.1 / 5.4 / 2.7 / 1.62 Gbps); USB3.2 20 Gbps; DP2.1 (10, 13.5 and 20 Gbps)
USB4 Low Power states
Yes, CL0s, CL1 and CL2
Quick Quote
Learn More

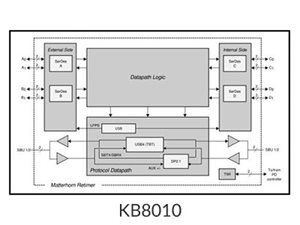

KB8010 - USB Type-C 40 Gbit/s Multiprotocol Switch and Bidirectional Bit-Level Retimer
https://www.epsglobal.com/getmetafile/a1973795-9858-4a78-a535-d91a71984e57/kb8010?maxsidesize=400
The KB8010 is an advanced USB Type-C® 40 Gbit/s multiprotocol switch and bidirectional bit-level retimer from the Matterhorn family.
KB8010
KB8010
Kandou
https://www.epsglobal.com/getmetafile/bf7d7473-e80d-4570-a005-966b25432641/Kandou
