KB9002 - PCIe 5.0 32 GT/s and CXL 2.0 retimer, x8 bidirectional lanes
Kandou
KB9002

KB9002 - PCIe 5.0 32 GT/s and CXL 2.0 retimer, x8 bidirectional lanes

Manufacturer: Kandou

Datasheet: KB9002

Delivers to: United States

Delivers to Europe.

Contact us for volume discounts.

Status:

Authorised Distributors
Authorized Distributor
Stock
Stock Availability
Bulk Discounts
Volume Discounts
Support
Technical Support
Warranty
Includes Warranty

Product Detail

The KB9002 is an advanced 8-lane bidirectional PCIe 5.0 protocol-aware retimer engineered for high-bandwidth computing and data center applications. Supporting data rates up to 32 GT/s with flexible lane bifurcation options (x8, x4, x2), it delivers the performance needed for today's demanding server, AI accelerator, and 5G infrastructure deployments.

The device features full CXL 2.0 compatibility and maintains backward compatibility with PCIe 4.x/3.x/2.x/1.x standards. Its sophisticated channel loss compensation of up to 36 dB enables designers to extend PCIe trace lengths while maintaining signal integrity in accordance with PCI-SIG specifications.

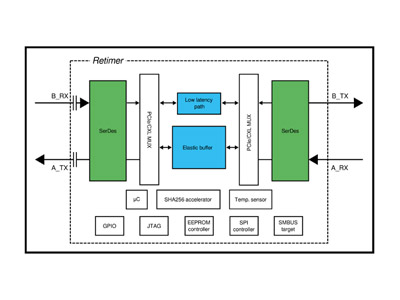

KB9002 - PCIe 5.0 32 GT/s and CXL 2.0 retimer, x8 bidirectional lanes
https://www.epsglobal.com/getmetafile/f293066b-6d70-4728-9f2b-72d5201d1128/kb9002?maxsidesize=400
The KB9002 is an advanced 8-lane bidirectional PCIe 5.0 protocol-aware retimer engineered for high-bandwidth computing and data center applications. Supporting data rates up to 32 GT/s with flexible lane bifurcation options (x8, x4, x2), it delivers the performance needed for today's demanding server, AI accelerator, and 5G infrastructure deployments.
KB9002
New
KB9002
0.00
Kandou
https://www.epsglobal.com/getmetafile/bf7d7473-e80d-4570-a005-966b25432641

Features & Benefits

  • PCIe Interface 8-lane bidirectional PCIe 5.0, supports up to 32 GT/s
  • Protocol Support CXL 2.0 and PCIe 4.x/3.x/2.x/1.x compatible
  • Signal Performance 36 dB dynamic channel loss compensation
  • Operating Modes CXL Retiming Mode with common clock and low latency datapath
  • Security Features Integrated SHA256 accelerator for secure boot protection of SPI flash configuration

Technical Specifications

PCIe Configuration8-lane bidirectional PCIe 5.0 with data rates up to 32 GT/s
Lane BifurcationSupports x8, x4 and x2 configurations
Package Size8.5 x 13.4 mm 332-ball BGA
Performance36 dB channel loss compensation @ 16 GHz, 10ns latency
SecuritySecure boot with SHA256 accelerator and RSA-2048 OTP storage
Power ModesRegular Mode (1.8V) or Power Saving Mode (1.2V/1.5V)
Special FeaturesIntegrated AC coupling capacitors, EyeScope, BER monitors
Clock SupportCommon clock with/without SSC, PCIe REFCLK (100 MHz)
KB9002 - PCIe 5.0 32 GT/s and CXL 2.0 retimer, x8 bidirectional lanes Datasheet

-->

Manufacturer

Kandou

Kandou, a Swiss-based company known for precision engineering and innovation, is a leader in high-speed signal conditioning and wired connectivity. With ISO9001 Certification and a reputation for quality, Kandou has shipped over 20 million retimer units, offering industry-leading signal integrity and low bit error rates.
